Product Introduction

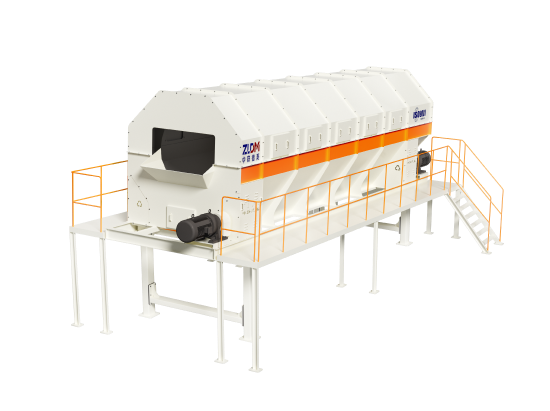

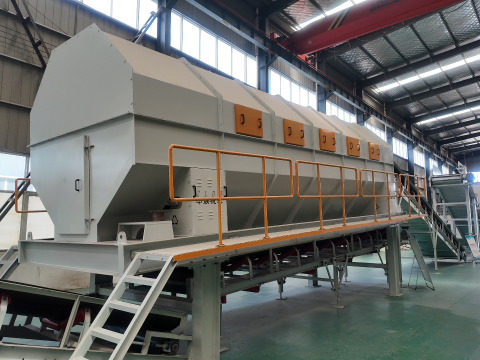

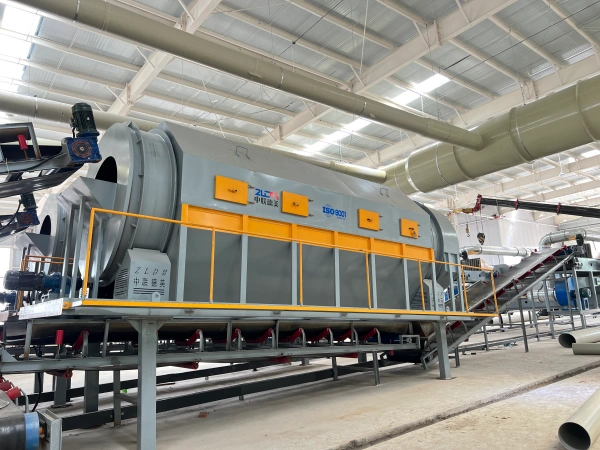

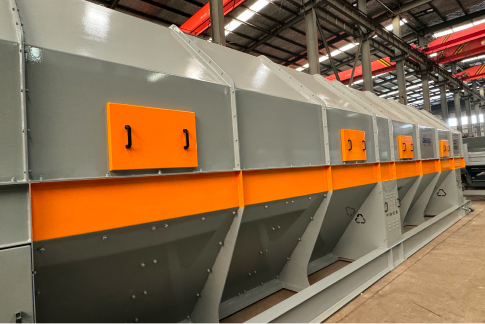

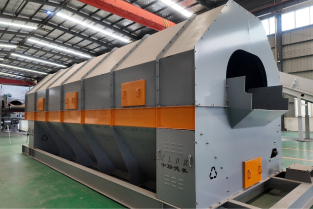

The drum screen can be used for construction waste, domestic waste, stale waste, construction waste, etc. The drum screen is a screening equipment that classifies materials based on their particle size. It has a solid overall structure, a high screening rate, and the screen holes are not prone to clogging. The screening effect is good. The drum screen rotates the cylinder, allowing the scattered materials to pass through the screen hole plates of the cylinder. To separate the materials smaller than the screen holes from those larger than the screen holes, facilitating the processing of subsequent procedures.
Working Principle

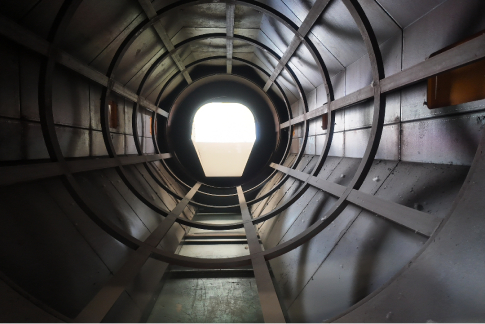

The motor is connected to the drum device through a reducer and a coupling, driving the drum device to rotate around its axis.
When the materials enter the drum device, due to the inclination and rotation of the drum device, the materials on the screen surface are flipped and rolled.
The qualified materials (under-screen products) are discharged through the screen mesh on the outer circle of the drum, while the unqualified materials (over-screen products) are discharged through the end of the drum.
Performance Characteristics
It adopts the principleof rolling conveying,with a small frictioncoefficient, light wearand the screen holesare not easy to beclogged.

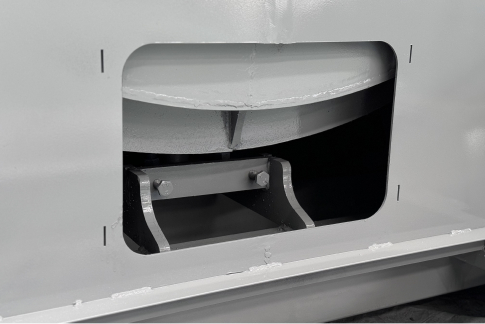

The roller supportadopts an integralshaft structure, whichoperates smoothlyand reliably with highscreening efficiency.

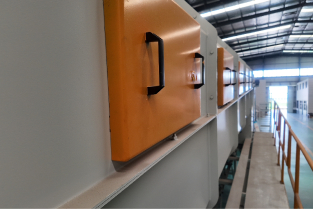

Fully sealed structure,equipped withconnection interfacesfor dust removaland deodorizationsystems, no dust andno pollution.
It adopts decelerationtransmission,featuring hightransmissionefficiency, low powerconsumption andenergy saving.
Functional Features
The screen mesh is made ofstainless steel, with a reasonablestructure, strong durability, stronguniversality of components andconvenient maintenance.
The installation Angle can beadjusted according to the material conditions.
The rotational speed of thebouncing separator can be adjustedby frequency conversion according todifferent materials.
The frame of the bouncing separatorhas sufficient rigidity and strengthto ensure the anti-deformation and stability performance of theequipment.
Safety devices and fault alarmdevices are provided to ensure thesafety and normal operation of theequipment.
Specification
| Equipment Model | Power(kw) | Dimensions (mm) | Drum length(mm) | Screening pore size(mm) |
|---|---|---|---|---|
| GTS-2060 | 5.5×2 | 2000 | 6000 | 10–20 |
| GTS-2060 | 5.5×2 | 2000 | 6000 | 20–50 |
| GTS-2060 | 5.5×2 | 2000 | 6000 | 20–50 |
| GTS-2060 | 5.5×2 | 2000 | 6000 | 20–50 |
