Product Introduction
The horizontal hydraulic baling machine uses hydraulic power as its driving force and is driven by a hydraulic cylinder to push the baling cart to complete the baling. The hydraulic system is composed of several parts, including the oil tank, power mechanism (hydraulic pump), control mechanism (control valve), hydraulic pipelines, and actuator (hydraulic cylinder).
The entire packaging process consistsof auxiliary times such as pressing the package, returning, picking up the box, turning the box, upward unloading of the package, downward unloading of the package, and receiving the package. It is mainly applied to the compression and packaging of loose materials. It uses hydraulic drive to compress compressible resources, reducing their volume and forming a whole. The density of the package blocks is high and the external dimensions are uniform. It effectively reduces the space occupied by placement, improves logistics efficiency, reduces transportation losses, significantly lowers freight costs, and beautifies the office and production environment.
Video Show
Performance Features
Technical Parameter
| Equipment Model | power（kw） | Systerm pressure（Mpa） | Feed in opening size(mm) | Includig dimensions(mm) |
| ZL-120 | 22 | 28 | 1900*900 | 1700*900*1100 |
| ZL-160 | 37 | 28 | 2000*1100 | 1700*1100*1300 |
| ZL-180 | 37 | 28 | 2500*1100 | 1700*1100*1300 |
| ZL-200 | 45 | 28 | 2800*1200 | 1700*1100*1300 |

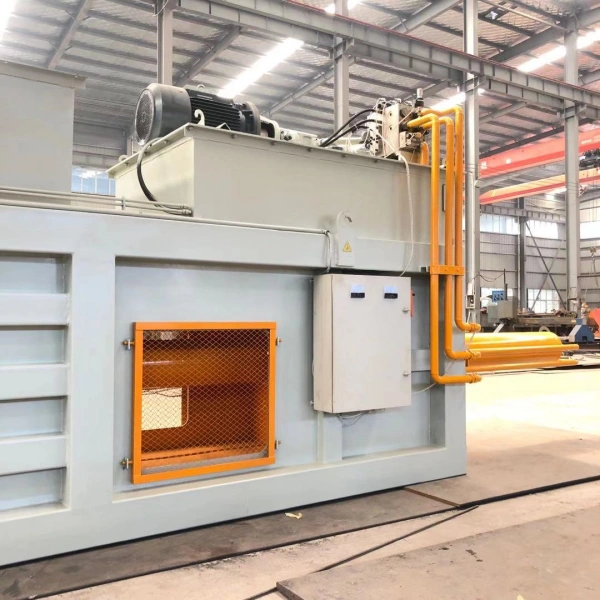

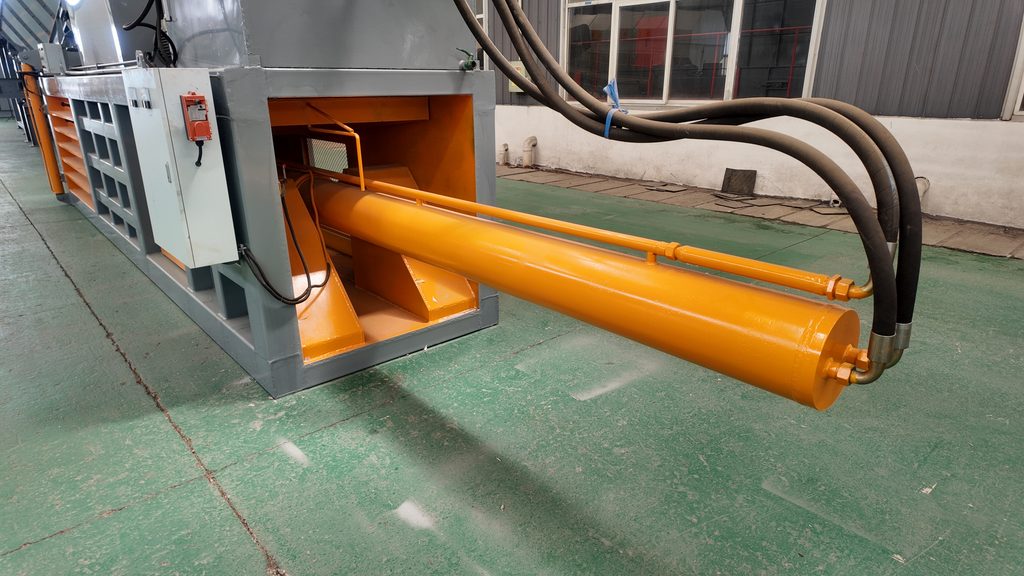

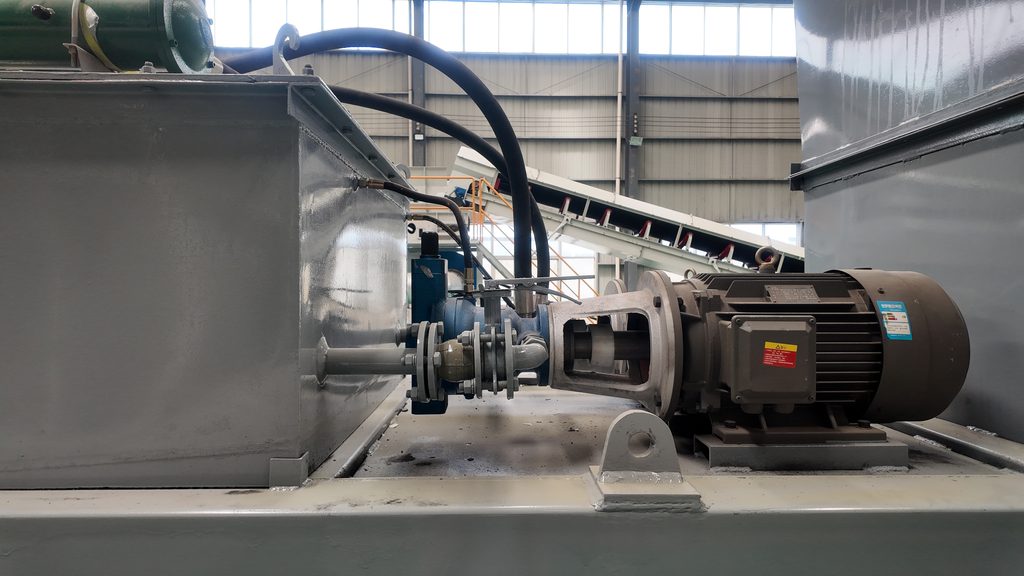

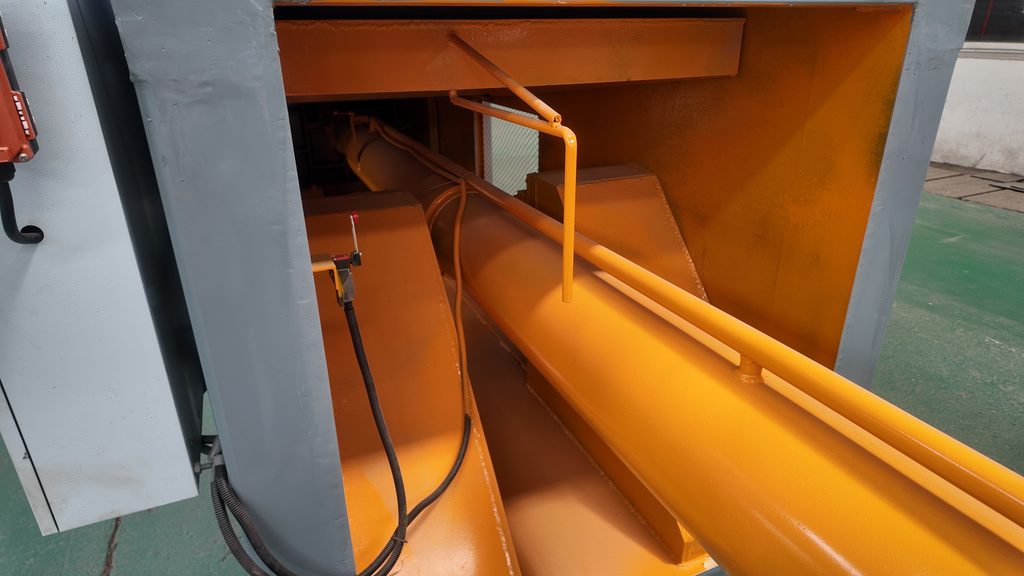

The hydraulic system utilizes a dual-pump (high/low pressure) configuration, cartridge valves, and heavy-duty cylinders equipped with high-performance seals; this ensures excellent pressure retention and locking, minimizing oil leakage and the “spring-back” effect of the baled paper. The machine frame is constructed from manganese steel plate—featuring 12mm-thick inner walls, with load-bearing sections reinforced to 20–25mm—and is fully welded with additional stiffeners to prevent deformation. It is powered by a national-standard, pure-copper motor with an accurate, honest power rating. The semi-automatic model requires 1–2 operators for wire-tying and baling, while the fully automatic model includes an integrated automatic wire-tying system, requiring only one person for supervision.

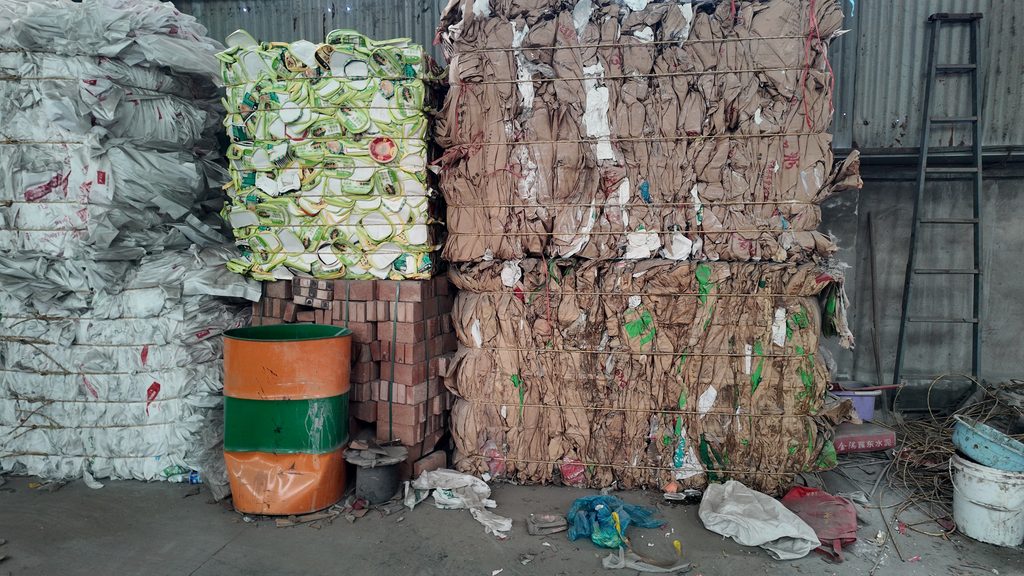

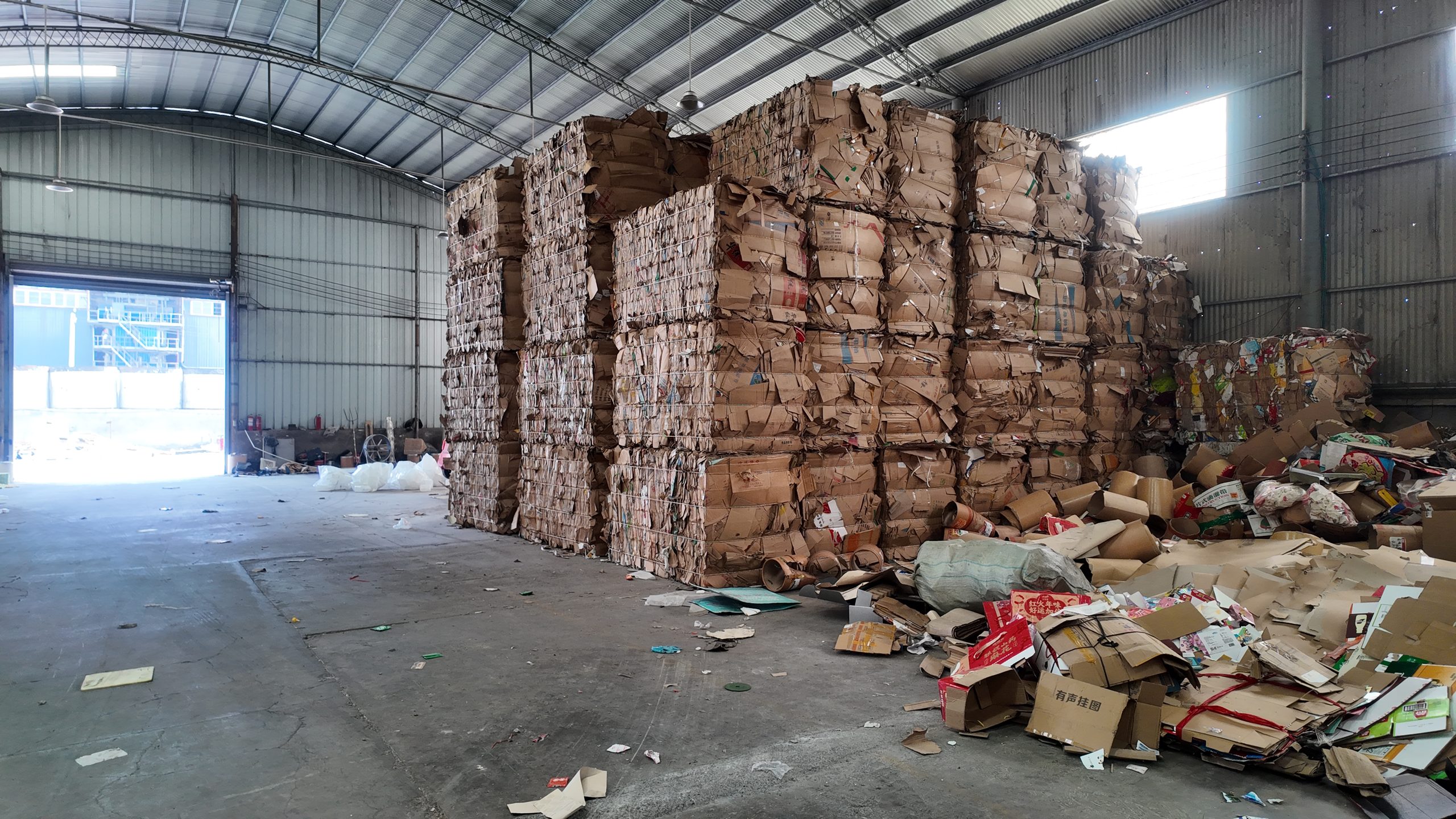

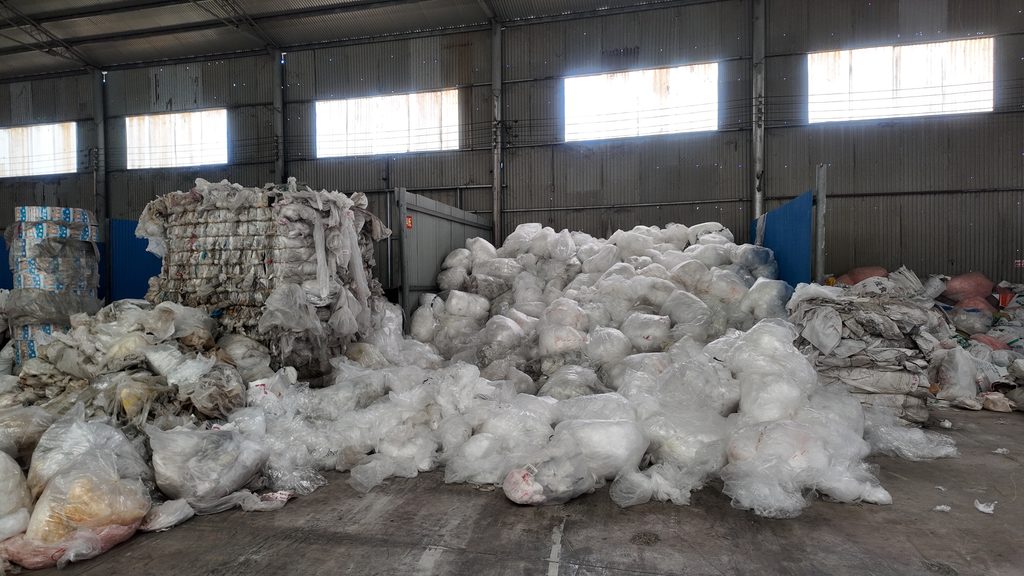

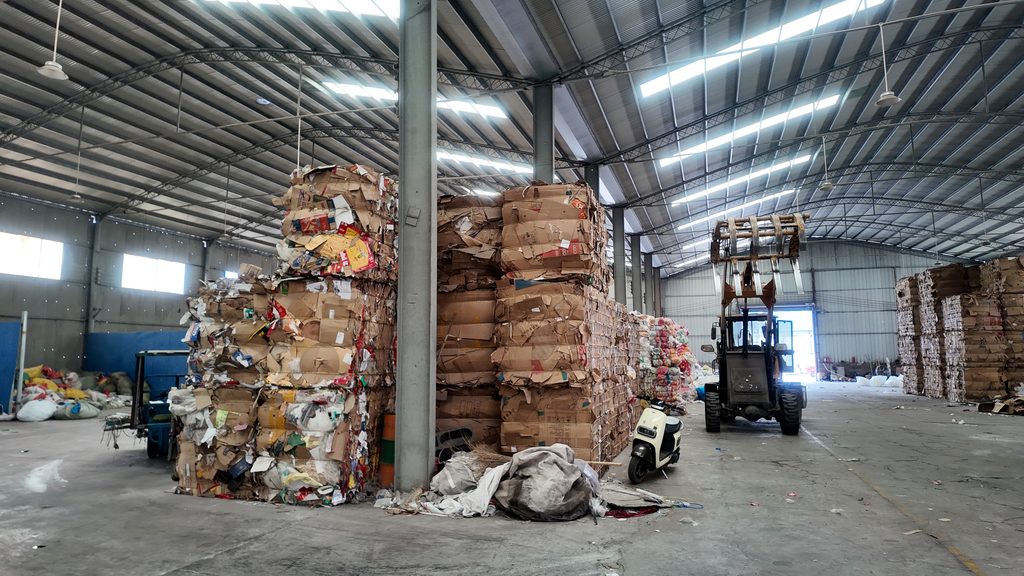

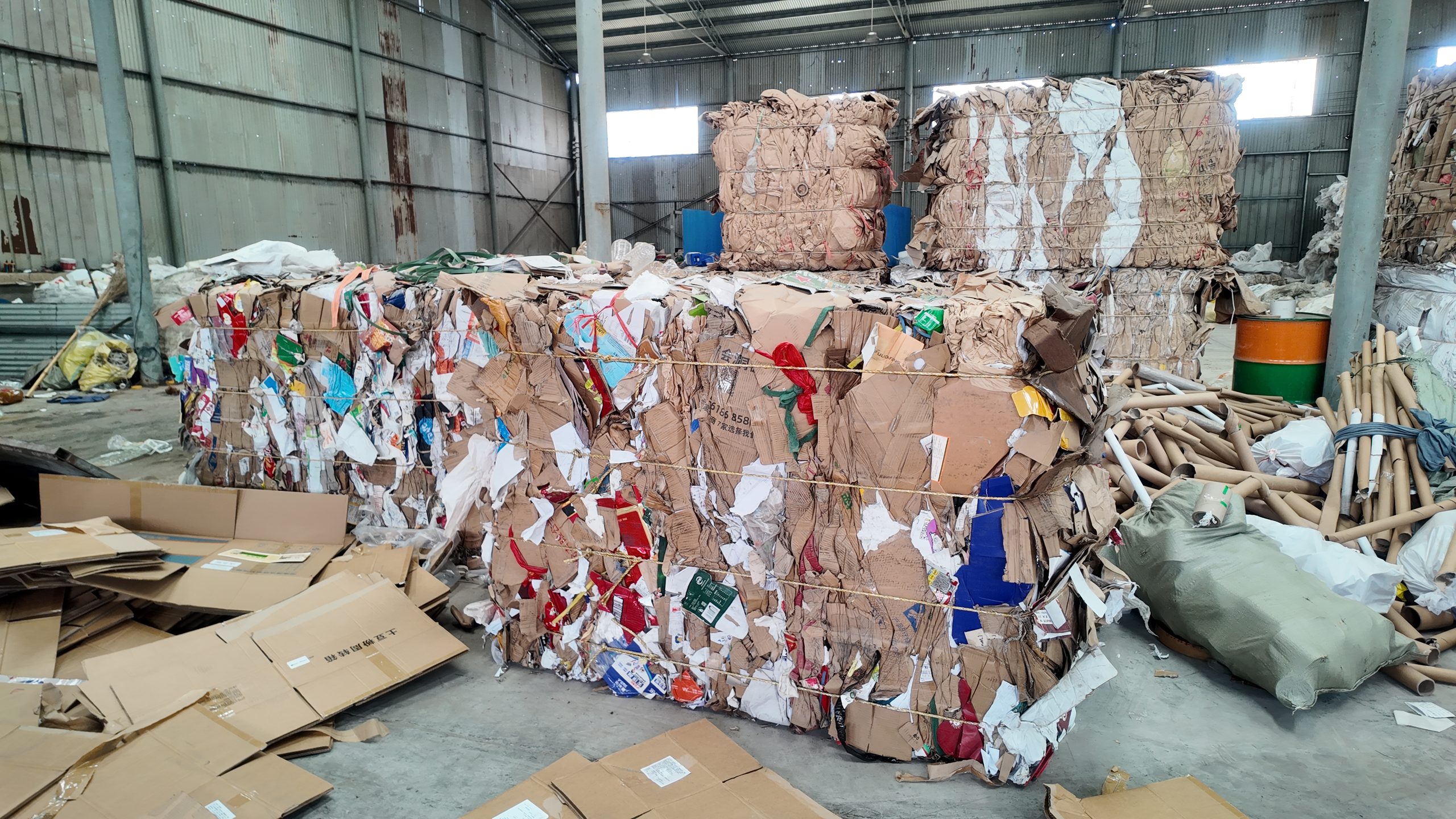

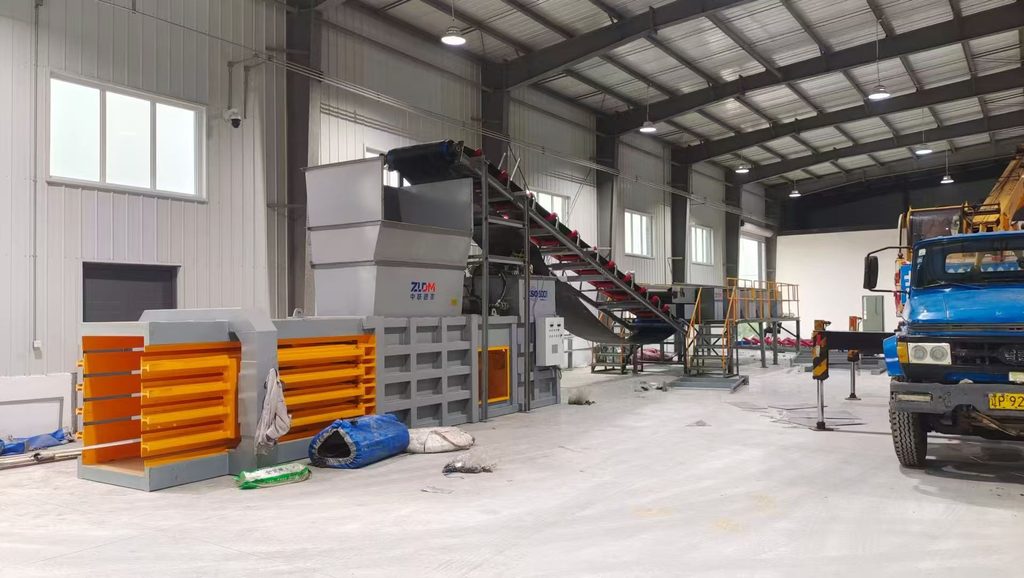

Customer Site Usage

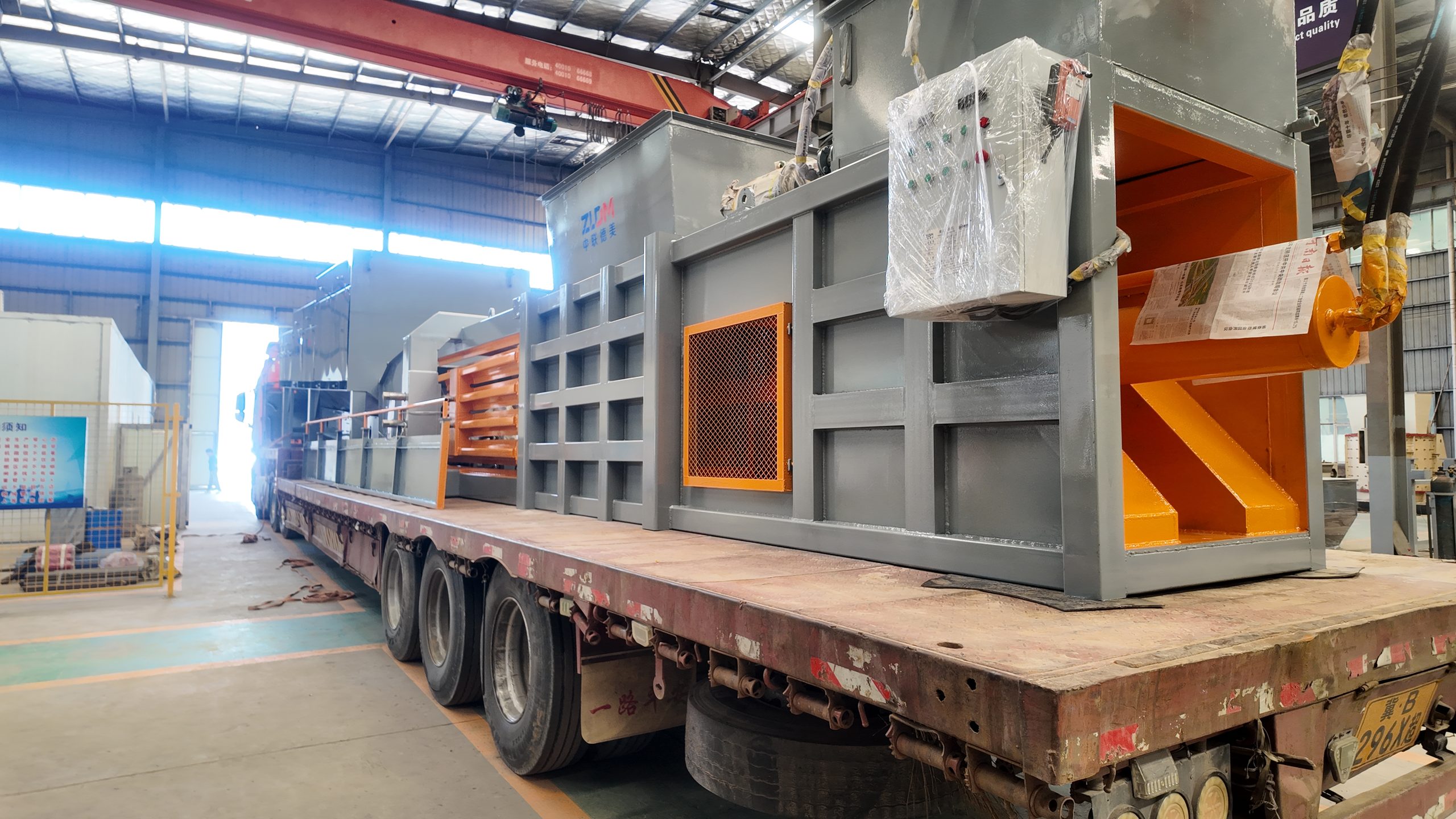

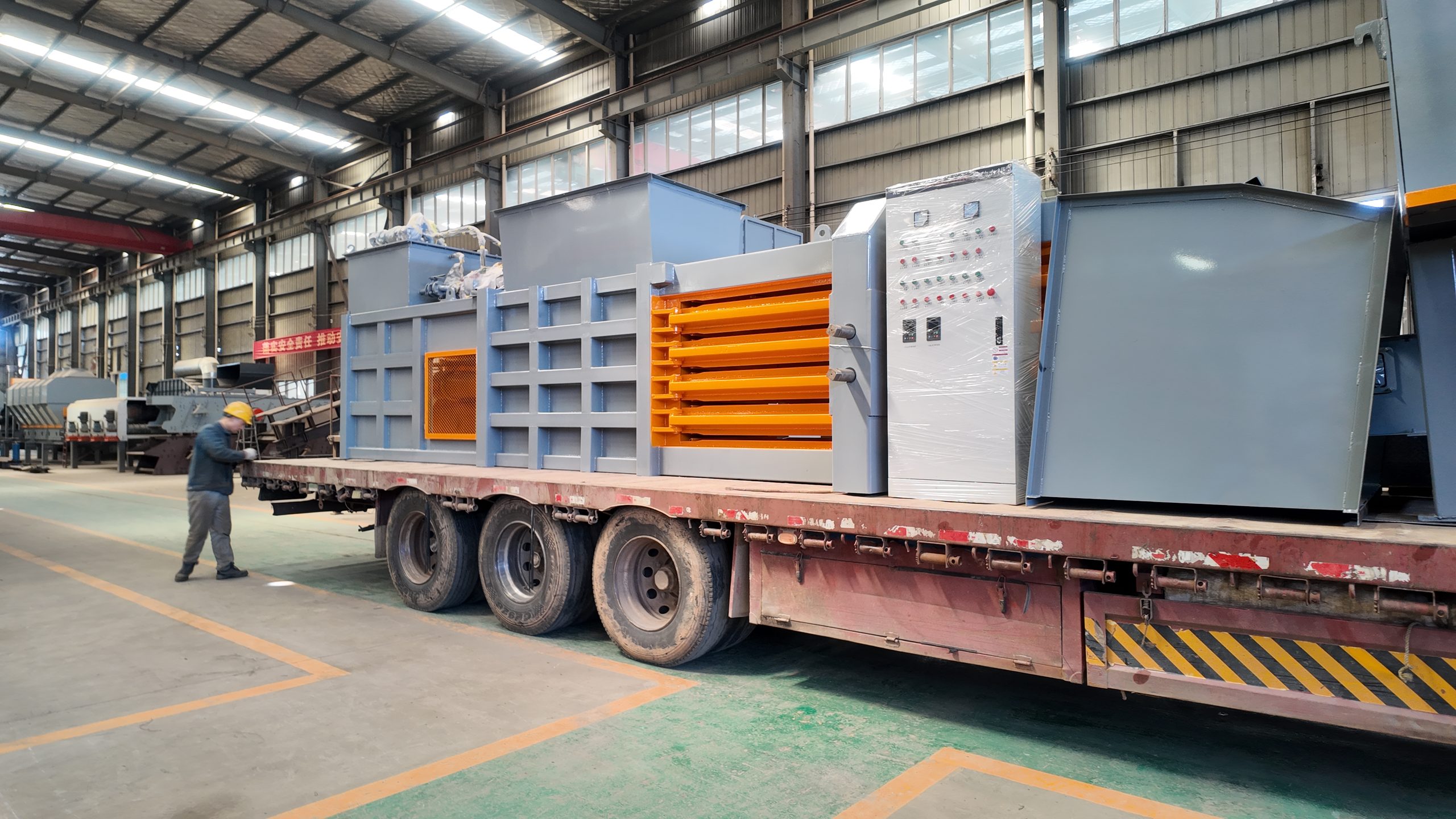

Shipped from the factory

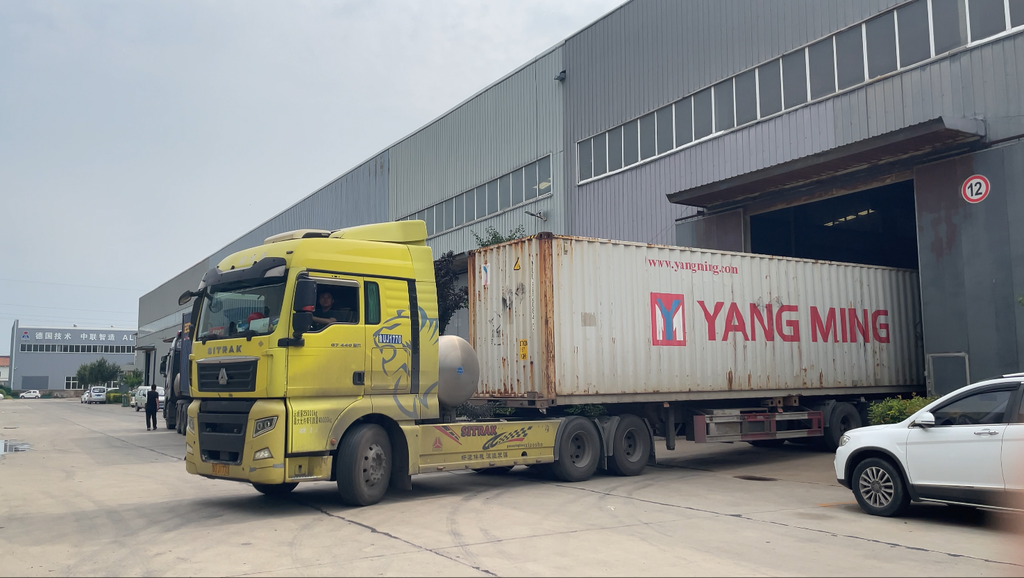

Export Packing
Customer Visit & Factory Tour
We warmly welcome clients from around the world to visit our factory and witness the entire manufacturing process of our waste paper balers. During your visit, you can observe raw material processing, equipment assembly, and live testing using actual waste materials. This transparent approach allows you to gain a comprehensive understanding of our production standards, quality control systems, and equipment performance before placing an order.
Furthermore, our engineers will be on-site to answer your questions, discuss your specific project requirements, and provide practical recommendations for your waste recycling and processing line. A factory visit is the best way to build confidence in the quality of our equipment and lay a solid foundation for a long-term partnership.
Certifications and Quality Standards
Our dual-shaft shredders are manufactured in strict accordance with international quality and safety standards, ensuring reliable performance even in the demanding environments typical of recycling operations. The entire production process adheres to the ISO quality management system. Every stage—from the selection of raw materials and mechanical processing to final assembly and testing—is subject to rigorous oversight to guarantee the equipment’s durability and operational stability. Upon request, we can provide relevant certification documents and test reports, giving our clients full confidence that our dual-shaft shredders meet all the standards and requirements of the global waste recycling industry.
